MarvinView objects

• .mrv file: (Marvin document format file) A .mrv file is created when the drawing of a molecule or other structure is saved using ChemAxon's MarvinSketch chemical editor. Before you can add a MarvinView object to an item, you must first upload the .mrv file to the item Asset Manager. How to upload a file as an asset
• Java plug-in: As with any Marvin feature, you must have the Java browser plug-in installed on your computer to run the MarvinView molecular viewer.

Students can manipulate a 3D molecule or other structure provided as an Interactive MarvinView object in an item. Manipulating the object can help students to reinforce or improve their understanding.

• A MarvinView object is identifiable in an item from its label "Interactive MarvinView" that appears above the 3D molecule or other structure.
• To start MarvinView: Click anywhere on the molecule that displays below the Interactive MarvinView label. Blue brackets will display in four corners around the molecule.



• To open MarvinView in a new resizable window: Double-click anywhere inside the blue brackets. The resizable window feature may not be available for all MarvinView objects.

• Any changes that a student makes to the appearance of an Interactive MarvinView object are NOT graded.

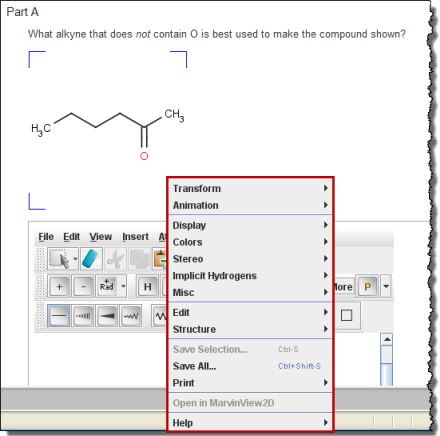

• To manipulate the MarvinView object: Click and drag on the molecule to rotate it. For more ways to change the appearance of a molecule: Right-click (Windows) or Control+click (Mac OS) to display a popup menu with editing options and keyboard shortcuts.



Common editing options from the MarvinView popup menu in student view

Transform	Select Transform and then choose a Zoom, Rotate, or Drag option. Reset View returns the image back to its original state.
Animate	Start or pause the spinning of a molecule: Animation > Play or Pause Change the spin direction of a playing animation: Drag the rotating image.
Change the type of display	Select Display, then choose a molecule display type: Wireframe Wireframe with Knobs Sticks Ball & Stick Spacefill
Implicit hydrogens	Select Implicit Hydrogens, then choose an option: On All On Hetero and Terminal On Hetero Off Sometimes you may not be allowed to control the display of implicit hydrogens.
Change structure	Select Structure, and then choose from available options, such as to clean in 2D or 3D, add or remove an explicit hydrogen, convert to aromatic or kekule form, contract or expand groups, and more.
Change color	Select Colors, then choose an option: Monochrome or CPK coloring Shapely or Group Atom/bond sets Change the background color
Copy or paste	Select Edit, and then choose either Copy or Paste.

• Tagline
• Part Text or Hint Text
• Answer Instructions
• Followup
• Response (within an expression)

Before you begin, check that your computer meets the requirements listed above for MarvinView.

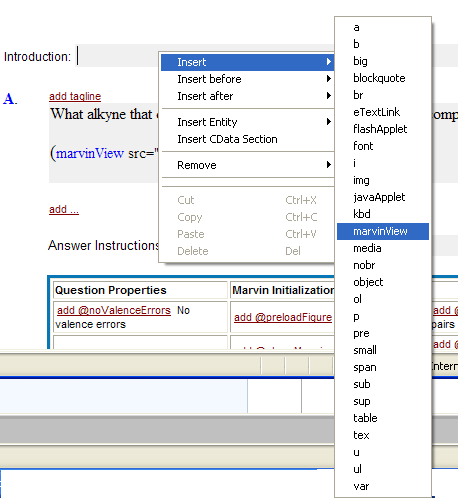

1. To add a MarvinView object, right-click in the text field and select Insert > marvinView.



2. Enter the .mrv file name in the marvinView tag text entry box.


3. Double-click in the text entry box.

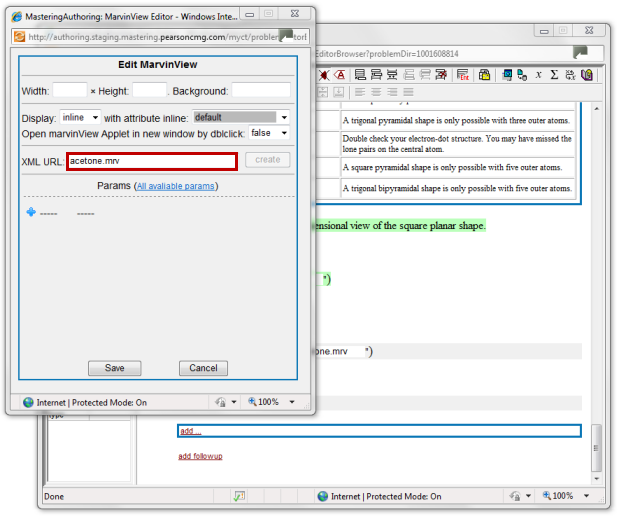

   The Edit MarvinView window opens with the file name shown in the XML URL field.

4. Enter the MarvinView initialization settings:
   • Height and Width in pixels
   • Background color in hexadecimal format
   • Display (inline or block)
   • If you want to allow the student to view the molecule in a separate window, set Open MarvinView Applet in new window by dblclick to true.
5. Under Params, add additional MarvinView parameters, as needed. The following table provides information about the most commonly used parameters.


   Parameter	Options
   implicitH	Off = No H hetero = H on hetero atoms heteroterm = H on hetero or terminal atoms all = H on all atoms
   explicitH	Display explicit hydrogen atoms drawn in the .mrv file. The default is true. true = Always show explicitly drawn hydrogen atoms. false = Never show explicitly drawn hydrogen atoms.
   lonePairsVisible	false = The default, which is not to show lone pairs. true = Show lone pairs.
   viewCarbonVisibility	Display the label of carbon atoms in structures. The default is on. on = Always show the atom labels of carbon atoms. off = Never show the atom labels of carbon atoms. inChain = Show the atom labels of carbon atoms at straight angles and at implicit Hydrogens.
   atomSymbolsVisible	Display properties of any atoms in 3D structures. Default is true. true = Always show the atom labels of all atoms. false = Never show the atom labels of all atoms.
   atomPropertiesVisible	Display properties of any atoms in structures. Default is false. true = Always show the properties of atoms. false = Never show the properties of atoms.
   cleandim	Number of space dimensions for cleaning. 2 = Two-dimensional cleaning 3 = Three-dimensional cleaning
   rendering	Options for how the MarvinView renders the structure. wireframe = Wireframe wireknobs = Wireframe with knobs sticks = 3D sticks ballstick = Ball and stick spacefill = Balls
   spin spin0 spin1 spin2 spin3	Spinning rate and axis for animated molecules. Spinning rate is specified in degrees per second, the axis is specified with a 3D vector. Numbers are separated by commas. Note: XYZ animations do not spin by default, only if this parameter is set.
   animate	Starts an XYZ animation sequence, or starts rotating the specified 3D molecule(s). off all comma-separated list of molecule indices (0...n-1)

   Notes:

   • MarvinView object parameters must be entered exactly as the code is specified. For example, a “ball and stick” rendering parameter must be entered as ballstick.
   • By default, the image can be rotated on an XY plane.
   • To learn more about the available MarvinView parameters, click All available params to access the MarvinView documentation.
6. When you are done, click Save.
