The Bonds Conformation expression
The Bonds Conformation expression (expressionOchemEvalConformBond) checks the relative orientation of two groups, one on each atom of the C–C bond that derives from the original ethane template.
You must provide the name of the group or groups for the evaluator to analyze. The group name must be either:
- A shortcut group name that MarvinSketch recognizes when you type it, such as Me, iBu, or OPh.

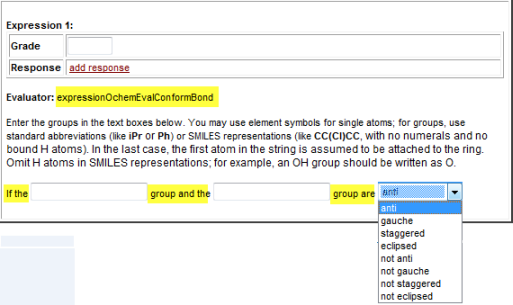

- A SMILES definition, such as O (for OH), Br, or C(C)C (for iPr) without any numerals or bound H atoms. See the on-screen instructions (shown in the image below) for more detail.
- The Bond Confirmation expression is available for items created with the solutionOchemSkeletal answer type.
- How to add one or more expressions
- How to specify the Grade and Response information
- Use the text boxes and dropdown menu to set or edit the orientation of the group or groups you want to be evaluated in student responses.
"If" condition options
